ZENITH Portable Limestone Crushing Line
Project Background:
Location: Riyadh, Saudi Arabia (20 minutes by car from Riyadh city)
Raw Material: limestone
Feed Size: 500mm
Output Size Requirement: 0-3/16’’, 3/16’’-3/8’’, 3/8’’-3/4
Capacity: about 70-80 cubic meter per hour
Working hours: 15 hours per day
Installation Time: Late 2011
Customer Feedback:
“We haven’t replaced any spare part after continuous running for 16 months. Everything is still in perfect condition so far!”
Plant Design:
Specifications of Portable Crusher YF938J69
NO Equipment Model remarks 1 Vribrating Feeder GZD960X3800 11kw 2 Jaw Crusher PE600X900 75kw 3 Main conveyor B800*8.5M 7.5kw 4 Side conveyor(optional) B500*3M 4kw 5 Generator(optional) Cummins 265KW 6 Metal remover(optional) RCYD(C)-8 2.2kw 7 Axle Dual-axle 8 Transport Dimension(MM) 12700X2550X3900 35T
Specifications of Portable Crusher Y3S1860F1214
NO Equipment Model remarks 1 Impact crusher PF-1214 132KW 2 Screen 3YK1860 22KW 3 Main conveyor B800*8.5M 5.5KW 4 Return conveyor (optional) B650*15M 7.5kw 5 Return conveyor (optional) B650*15M 7.5kw 6 Fines conveyor (optional) B800*15M 11kw 7 Axle Dual-axle 8 Transport Dimension (mm) 14900X2900X4380 40T
Technical Advantages (comparative analysis against stationary plant)
No Items Stationary Plant Portable Plant 1 Floor Space 70x36M 44x33M 2 Civil Work 82M3（Complex） 19M3（Simple） 3 Labor Force 2-3 People 1-2People 4 Electric System Extra Cost Standard design 5 Mobility Low, need to be dismantled Whole set movement by tracotr 6 Cable Length Cables connected to all main units Cables connected to extra conveyors only. 7 Production cycle 2 months 2 weeks 8 others More labors needed for the civil work Simple and easy foundation More auxiliary equipments needed Whole set transport and installation, only conveyors assembled onsite Extra steel connecting parts/ frames required for erection All operational and maintenance platform are standard parts
such as the crane

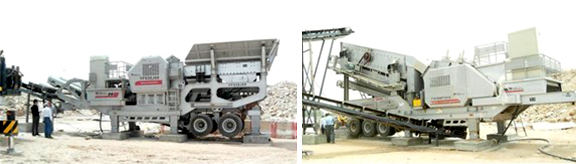

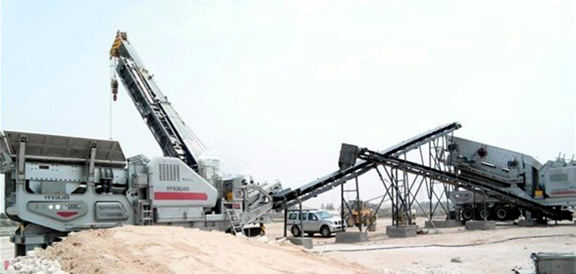

Quick Glance after Installation

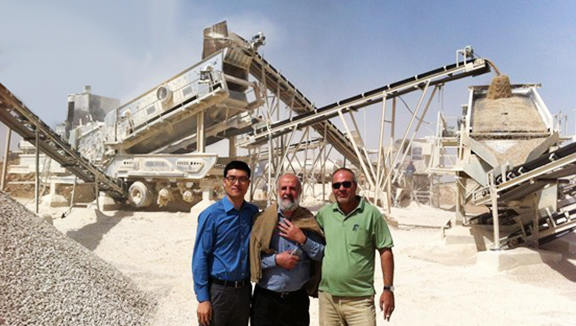

ZENITH Engineer on the Working Site
