The 7 Most Useful Mining Equipment in Mineral Processing

Mineral processing, also known as ore dressing, involves extracting valuable minerals from ores and refining them into usable materials. The efficient processing of minerals is a crucial step in ensuring that the raw materials extracted from the earth are transformed into substances that are useful in a wide range of industries, including construction, manufacturing, energy production, and more. To achieve this, various types of mining equipment are utilized, each serving a unique purpose in the processing chain.

In this article, we will explore 7 most useful and commonly used mining equipment in mineral processing. These machines are instrumental in the extraction, grinding, separation, and refining processes. We will also discuss how they contribute to improving efficiency, reducing environmental impact, and ensuring the sustainability of the mining industry.

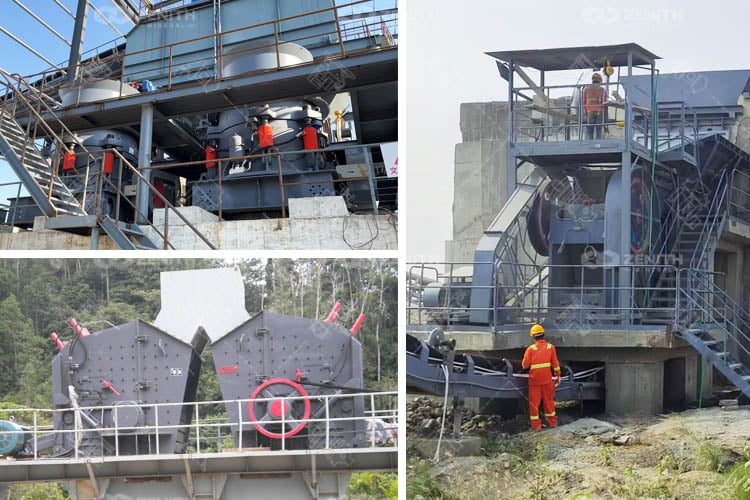

1. Stone Crushers

Crushers are among the first pieces of equipment used in mineral processing, as they are responsible for breaking down large pieces of ore into smaller, more manageable sizes. These machines are critical to reducing the size of raw ore to a size that is suitable for further processing, such as grinding or flotation.

Types of Stone Crushers:

• Jaw Crushers: Jaw crushers are used for primary crushing, where large rocks are broken down into smaller pieces by compressive force. These crushers are robust and designed to handle large volumes of material.
• Cone Crushers: These are typically used in secondary and tertiary stages of crushing. They are ideal for processing hard materials and are capable of delivering fine, consistent output.
• Impact Crushers: Impact crushers use high-speed impact forces to break down materials. These crushers are suitable for softer, less abrasive materials and are used when a finer material output is needed.

Stone Crushers contribute significantly to the mineral processing chain by reducing ore sizes, increasing throughput, and preparing materials for further processing, thus increasing the overall efficiency of the operation.

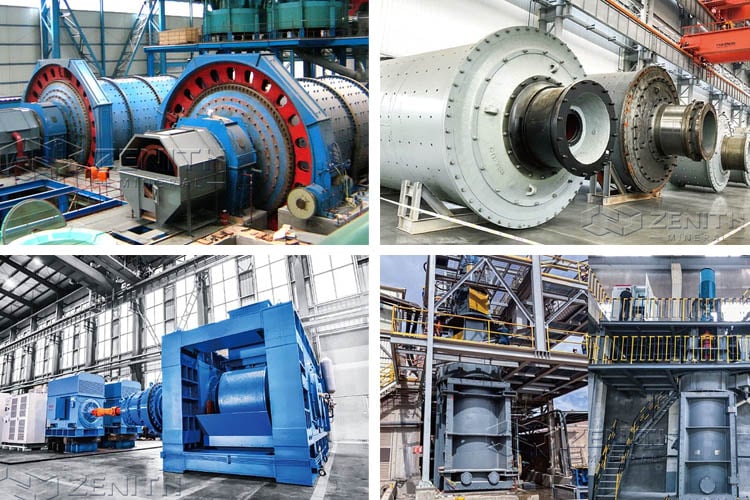

2. Grinding Mills

Once the ore has been crushed into smaller pieces, it is then processed using grinding mills. Grinding is essential in mineral processing because it liberates valuable minerals from the surrounding rock, allowing for further separation and concentration.

Types of Grinding Mills:

• Ball Mills: Ball mills are cylindrical machines filled with steel balls. The ore is fed into the mill, and the rotation of the mill causes the balls to collide with the ore, breaking it down further. Ball mills are widely used in both wet and dry grinding processes and are essential in fine grinding applications.
• Rod Mills: Similar to ball mills but with long rods instead of balls, rod mills are particularly effective in grinding coarse materials. The rods help produce a more uniform product.
• High Pressure Grinding Rollers (HPGR): High Pressure Grinding Rollers are an innovative and energy-efficient grinding technology increasingly used in mineral processing. They consist of two counter-rotating rollers, which apply high pressure to the material fed between them. This pressure is significantly higher than traditional milling, causing the material to fracture and reducing it to a smaller, more uniform size.

Grinding mills are pivotal in ensuring that the minerals are finely ground for the next steps in the process, which helps to maximize recovery rates and improve the overall efficiency of the plant.

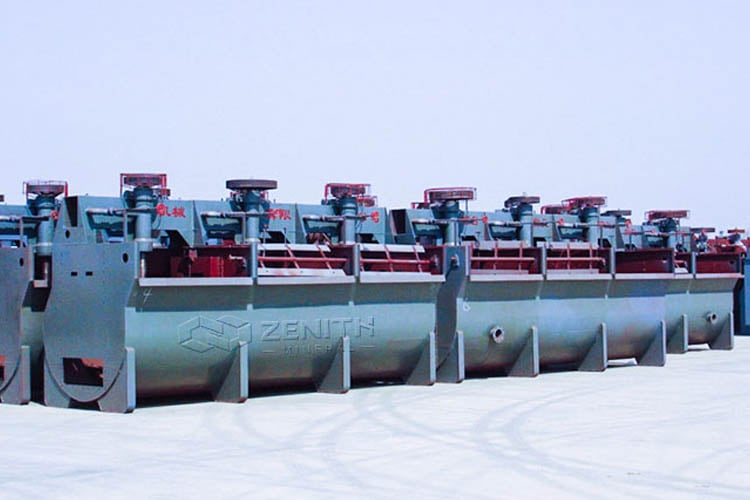

3. Flotation Cells

Flotation is a widely used process in mineral processing for separating valuable minerals from waste material or gangue. The process involves mixing finely ground ore with water and chemicals to create a slurry. Air bubbles are then introduced into the slurry, and the minerals that are attracted to the bubbles rise to the surface, where they can be skimmed off.

Features of Flotation Cells:

• Air Injection: Flotation cells inject air into the slurry, which helps form bubbles that attach to the desired mineral particles.
• Reagents: Chemical reagents are added to alter the surface properties of the minerals, making them more or less hydrophobic, thus facilitating their attachment to the air bubbles.
• Cell Design: Modern flotation cells come with various configurations, including mechanical flotation cells, column flotation cells, and pneumatic flotation cells, each designed for different mineral types and processing stages.

Flotation cells are essential in the separation of sulfide minerals, particularly in copper, gold, and other base metal operations. They play a key role in achieving high recovery rates and producing high-quality concentrates.

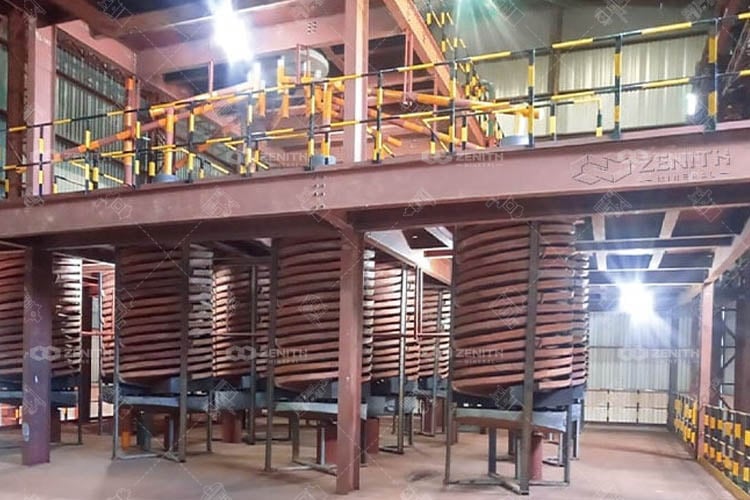

4. Gravity Separation Equipment

Gravity separation is one of the oldest and most widely used methods for mineral processing, especially for the extraction of gold, tin, and other precious metals. This method relies on the difference in the density of minerals to separate valuable particles from waste material.

Types of Gravity Separation Equipment:

• Shaking Tables: Shaking tables are used to separate fine particles based on their specific gravity. The table is tilted and vibrated to move the material across the surface, separating lighter and heavier particles.
• Spiral Concentrators: These devices use a spiral-shaped structure to create a flow of water that separates heavier minerals from lighter ones based on density.
• Jigs: Jigs work by pulsating a water column through a bed of material, allowing heavier particles to settle to the bottom while lighter particles are carried away.

Gravity separation equipment is particularly effective for materials that have a significant density difference, making it a cost-effective and environmentally friendly option for certain types of ore.

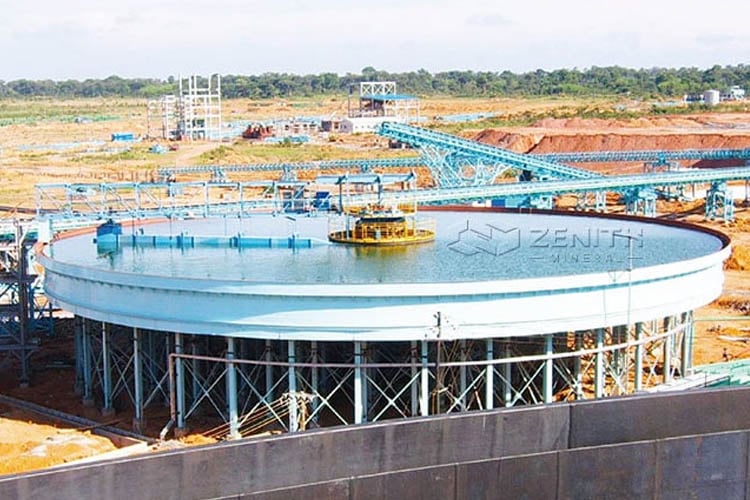

5. Thickeners and Clarifiers

Thickeners and clarifiers are used in mineral processing plants to separate solid particles from liquids. After the flotation or leaching processes, the slurry often contains a significant amount of water that needs to be removed before the material can be further processed or disposed of.

• Thickeners: Thickeners are used to increase the concentration of solids in a slurry. They achieve this by allowing the heavier solid particles to settle at the bottom, while the liquid phase (often referred to as "overflow") is removed.
• Clarifiers: Clarifiers perform a similar function to thickeners, but they are specifically designed to clarify the water by removing finer particles that remain suspended.

These machines help manage water usage in the plant, reducing environmental impact, and are essential for managing waste and ensuring that the water used in the process is recycled effectively.

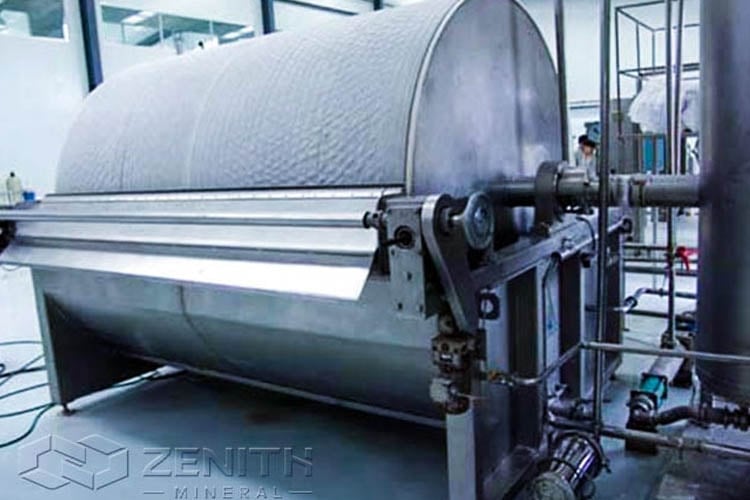

6. Filters

Filtration is an important part of mineral processing, particularly in the final stages of concentrate production or tailings management. Filters are used to separate water from the mineral concentrate or tailings, allowing the water to be reused or disposed of more easily.

Types of Filters:

• Vacuum Filters: These filters use a vacuum to pull liquid through a filter cloth, leaving behind solid particles. They are often used in gold and copper processing to filter fine concentrates.
• Pressure Filters: Pressure filters apply external pressure to force liquids through a filter medium. They are often used for finer particles and materials that require a higher level of filtration.
• Disc Filters: Disc filters consist of rotating discs that create a vacuum to filter slurries. They are often used in applications where large volumes of slurry need to be processed quickly.

Filtration equipment is crucial for producing a high-quality concentrate and ensuring that environmental regulations are met by properly managing water and waste products.

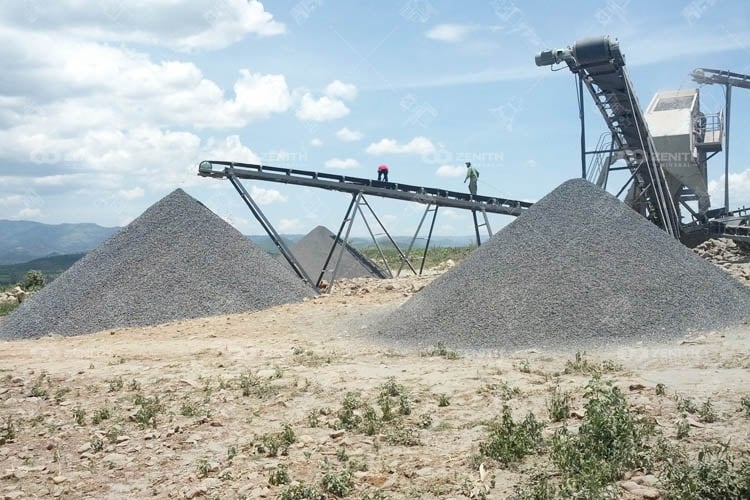

7. Conveyors

Conveyors are an essential part of any mining operation, especially in mineral processing plants. They are used to transport materials from one part of the plant to another, ensuring smooth and continuous processing.

Types of Conveyors:

• Belt Conveyors: Belt conveyors are the most common type of conveyor used in mining and mineral processing. They are used to transport materials over long distances and are available in various configurations, including horizontal, inclined, and vertical.
• Screw Conveyors: These conveyors use a rotating screw to move materials. They are often used in applications where the material is in a slurry form or requires gentle handling.
• Bucket Elevators: These conveyors are used to transport materials vertically. They are particularly effective for handling granular or powdered materials.

Conveyors ensure that materials flow smoothly between different stages of the mineral processing chain, improving operational efficiency and reducing downtime.

The mineral processing industry is highly dependent on advanced equipment that can efficiently extract, refine, and transport valuable minerals from the ore. Each piece of equipment plays a vital role in improving efficiency, reducing costs, and ensuring that the overall process is sustainable. From crushers that break down large rocks to flotation cells that separate valuable minerals, each machine has its part to play in transforming raw materials into products that power modern industries.

As the mining industry evolves and the demand for sustainable practices increases, advances in mineral processing equipment are expected to focus on greater energy efficiency, reduced environmental impact, and improved recovery rates. The seven pieces of equipment discussed—crushers, grinding mills, flotation cells, gravity separation equipment, thickeners, filters, and conveyors—will continue to be central to the ongoing development and success of the mining and mineral processing industry.
