Technical Advantages of Double Roll Crushers for Ceramic Raw Material Crushing

Pre‑crushing is a critical step in ceramic raw‑material processing. The performance of pre‑crushing equipment directly determines energy consumption, grinding‑media wear and final material quality of downstream grinding operations. This article describes the key technical advantages of the ZENITH‑PGY double‑roll crusher for ceramic raw‑material pre‑crushing, including crushing principle, low‑iron‑contamination performance, energy‑saving benefits, environmental‑friendly features, intelligent configurations and full‑set model parameters for production‑line reference.

Click Here to Know More About Double Roller Crusher.

1. How the Double Roller Crusher Works?

The double roller crusher crushes material by high-pressure extrusion. The material is compressed between two roller surfaces, and the crushed product has a high content of fine sand and fine powder. Even larger particles develop numerous micro-cracks due to the extrusion, which makes further crushing easier. If a screening and re-crushing (recycling) process is adopted — returning the screened coarse particles for a second pass — the output of fine powder can be further increased.

This is exactly where it differs from single-particle crushing. With the new medium-pressure laminated crushing technology, its output is more than 50% higher than that of traditional single-particle crushers.

Click Here to Know More About Double Roller Crusher.

2. Why the Double Roller Crusher Can Keep Iron Contamination Below 0.01%？

Because crushing is carried out by extrusion, roller surface wear is minimal, and the increase in the iron content of the raw material is less than 0.01% (one ten-thousandth).

Matching this low wear is the roller body material: the roller shell is made of high-quality wear-resistant material with a long wear life; calculated on an output basis, the wear cost per ton of sand is far lower than that of other sand making machines.

3. What’s the Benefits for Downstream Grinding Processes？

On a ceramic raw material production line, the high-efficiency double roller crusher takes on the pre-crushing task. As pre-crushing equipment, it can reduce raw materials to a fine sand/powder state, allowing the pulverizer to run at higher efficiency. The machine itself has low energy consumption, and the material it discharges contains micro-cracks and is easier to grind further, thus improving the efficiency of the pulverizer and reducing power consumption. Feeding this fine powder into the downstream pulverizer can also reduce grinding media wear.

As for the machine's own energy consumption, it uses single-power transmission. Only one motor for the whole machine which saves more than 40% of energy and at the same time reduces the installed capacity of transformers across the whole mining site.

4. Footprint and Environmental‑Friendly Characteristics

The double roller crusher has a simple structure, a compact size and a small footprint; it is easy to install and convenient to operate and maintain. The compact design occupies little plant floor space, saving civil construction costs and making it easy to retrofit existing grinding production lines.

In terms of environmental performance, the machine can operate with water, preventing dust from spreading; the crushing chamber is fully sealed and the working noise is low. The roller press runs with low vibration, and the material is crushed inside a sealed chamber, so noise is low and dust emissions are minimal, which is favorable for passing environmental compliance assessments.

As for the product, the aggregate gradation is reasonable and the bulk density is high, meeting highl standards for construction sand.

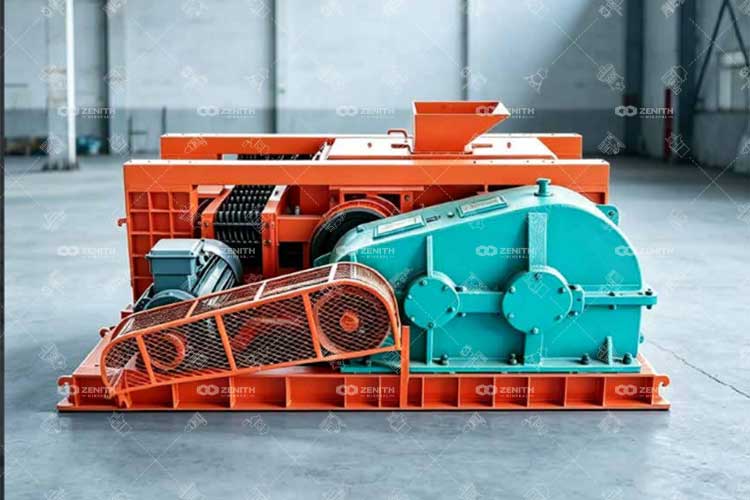

5. ZENITH‑PGY Series: New-Generation High-Efficiency Double Roller Crusher

The high-efficiency double roller crusher is an upgrade built on the high-efficiency energy-saving medium-pressure roller sand making machine. The main points are:

· New Hydraulic Pressure Adjustment System: provides more stable and reliable pressure, with automatic pressure adjustment during production.

· New Auxiliary Grease Lubrication System: the improved grease lubrication system reduces the labor intensity of workers; a temperature sensor has been added at the bearing position, with a high-temperature alarm function.

· Intelligent Integrated Control Cabinet: equipped with a one-touch start function. During operation it automatically monitors all operating data of the sand making machine, intelligently adjusts parameters and gives timely fault alarms, offering better equipment protection and improving production efficiency.

Together with the flexibly applied automatic roller pressure adjustment technology, the machine lowers labor costs while increasing output; the roller gap-free pressure adjustment system ensures a high sand production rate.

Click Here to Know More About Double Roller Crusher.

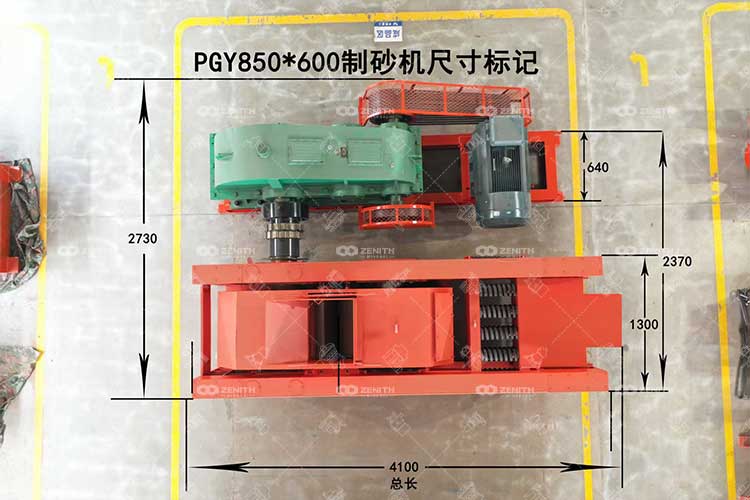

6. ZENITH-PGY Series Double Roller Crusher — Model Parameters

FAQ

Q1: With a double roller crusher for ceramic raw material pre-crushing, how low can iron contamination be controlled?

A: Because crushing is carried out by extrusion, roller surface wear is minimal, and the increase in the iron content of the raw material is less than 0.01% (one ten-thousandth). The roller shell is made of high-quality wear-resistant material with a long wear life; calculated on an output basis, the wear cost per ton of sand is far lower than that of other sand making machines.

Q2: How fine can the discharge size of the double roller crusher be?

A: All five models of the ZENITH-PGY series double roller crusher have a discharge size of <5 mm. When used as pre-crushing equipment, the discharge can reach a fine sand/powder state for further processing by the downstream pulverizer.

Q3: How many tons of raw material can the double roller crusher process per hour?

A: The ZENITH-PGY series double roller crusher covers a processing capacity of 40-220 t/h. With the new medium-pressure laminated crushing technology, output is more than 50% higher than that of traditional single-particle crushers.

Q4: How much power does the double roller crusher save compared with traditional crushers?

A: It uses single-power transmission — only one motor for the whole machine — saving more than 40% of energy and at the same time reducing the installed capacity of transformers across the whole mining site.

Q5: Can the double roller crusher operate with water? How are dust and noise controlled?

A: It can operate with water to prevent dust from spreading; the crushing chamber is fully sealed and the working noise is low. The roller press runs with low vibration, and the material is crushed inside a sealed chamber, so noise is low and dust emissions are minimal, which is favorable for passing environmental compliance assessments.
